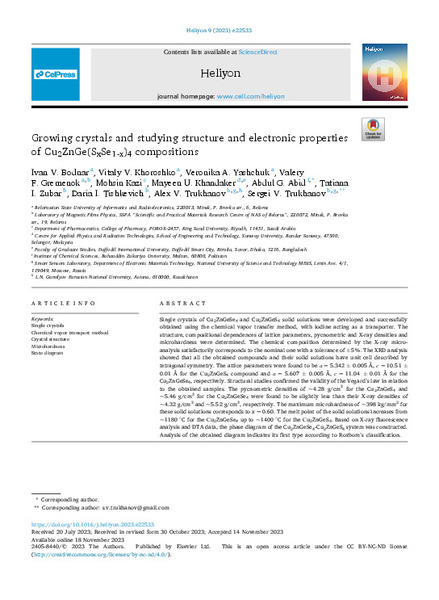

Growing crystals and studying structure and electronic properties of Cu2ZnGe(SхSe1-x)4 compositions

Abstract

Single crystals of Cu2ZnGeSe4 and Cu2ZnGeS4 solid solutions were developed and successfully obtained using the chemical vapor transfer method, with iodine acting as a transporter. The structure, compositional dependences of lattice parameters, pycnometric and X-ray densities and microhardness were determined. The chemical composition determined by the X-ray microanalysis satisfactorily corresponds to the nominal one with a tolerance of ±5 %. The XRD analysis showed that all the obtained compounds and their solid solutions have unit cell described by tetragonal symmetry. The attice parameters were found to be а = 5.342 ± 0.005 Å, с = 10.51 ± 0.01 Å for the Сu2ZnGeS4 compound and а = 5.607 ± 0.005 Å, с = 11.04 ± 0.01 Å for the Cu2ZnGeSe4, respectively. Structural studies confirmed the validity of the Vegard’s law in relation to the obtained samples. The pycnometric densities of ~4.28 g/cm3 for the Cu2ZnGeS4 and ~5.46 g/cm3 for the Cu2ZnGeSe4 were found to be slightly less than their X-ray densities of ~4.32 g/cm3 and ~5.52 g/cm3 , respectively. The maximum microhardness of ~398 kg/mm2 for these solid solutions corresponds to x = 0.60. The melt point of the solid solutions increases from ~1180 ◦C for the Сu2ZnGeSe4 up to ~1400 ◦C for the Сu2ZnGeS4. Based on X-ray fluorescence analysis and DTA data, the phase diagram of the Cu2ZnGeSe4-Cu2ZnGeS4 system was constructed. Analysis of the obtained diagram indicates its first type according to Rozbom’s classification.
